100L×3 Egg Yolk Lecithin Supercritical CO2 Extraction Machine
Introduction:
The SCFE machine can effectively extract oil from yolk.The the egg yolk lecithin is left and collected.
The extraction process is green and pollution-free, the extraction efficiency is high, and the product quality is the best.
The SCFE machine is a high-pressure systematic device which changes the CO2 between liquid, supercritical state and
gas for extraction and separation of materials and for process of system circulation.CO2 can be recycled and reused.
1, No use of organic solvent, no pollution of extracts.
2, No discharge of solid waste, waste gas or waste water.
3, High selectivity of extracts, high concentration of components.
4, Easy separation of CO2 from extracts.
Products Description:
1, The extractor adopts pneumatic and electric quick opening structure, which is stable and clean.
2, The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 100L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to preserve heat.
The outermost layer is wrapped with stainless steel skin to ensure the beauty of the equipment.
4, The machine is controlled remotely and automatically by PLC.
Products Type:
| No. |
Type |
Specification |
Pressure |
Flow |
Area |
Height |
Capacity of
raw material
|
| 1 |
5L+1L |
two extractors two separators |
500bar |
60L/H |
10 m2 |
2.5 m |
testing purpose |
| 2 |
10L |
three extractors two separators |
500bar |
100L/H |
10 m2 |
3 m |
10 to 20 kg |
| 3 |
25LX3 |
three extractors two separators |
350bar ~ 750bar |
300L/H |
20 m2 |
4.5 m |
50 to 150 kg |
| 4 |
50LX3 |
three extractors two separators |
350bar ~ 750bar |
600L/H |
80 m2 |
5.5 m |
0.1 to 0.3 ton |
| 5 |
100LX3 |
three extractors two separators |
350bar ~ 750bar |
1000L/H |
130 m2 |
7 m |
0.2 to 0.6 ton |
| 6 |
200LX3 |
three extractors two separators |
350bar ~ 750bar |
1500L/H |
200 m2 |
8.5 m |
0.5 to 1.2 ton |
| 7 |
300LX3 |
three extractors two separators |
350bar ~ 750bar |
2500L/H |
300 m2 |
9 m |
0.7 to 2 ton |
| 8 |
400LX3 |
three extractors two separators |
350bar ~ 750bar |
3500L/H |
400 m2 |
9.5 m |
1 to 2.5 ton |
| 9 |
500LX3 |
three extractors two separators |
350bar ~ 750bar |
4000L/H |
450 m2 |
10 m |
1 to 3 ton |
| 10 |
600LX3 |
three extractors two separators |
350bar ~ 750bar |
4000L/H |
500 m2 |
10 m |
1.5 to 3.5 ton |
| 11 |
800LX3 |
three extractors two separators |
350bar ~ 550bar |
6000L/H |
540 m2 |
12 m |
2.5 to 4.5 ton |
| 12 |
1000LX3 |
three extractors two separators |
350bar ~ 550bar |
8000L/H |
540 m2 |
14 m |
3 to 6 ton |
| 13 |
1500LX3 |
three extractors two separators |
350bar ~ 550bar |
15000L/H |
600 m2 |
14 m |
3.5 to 8 ton |
| 14 |
2000LX3 |
three extractors two separators |
350bar ~ 550bar |
15000L/H |
600 m2 |
16 m |
5 to 12 ton |
| 15 |
3500LX3 |
three extractors two separators |
350bar ~ 550bar |
25000L/H |
700 m2 |
16 m |
8 to 18 ton |
| 16 |
5000LX3 |
three extractors two separators |
350bar ~ 550bar |
25000L/H |
800 m2 |
16 m |
12 to 24 ton
|
Product Tags:
|
|

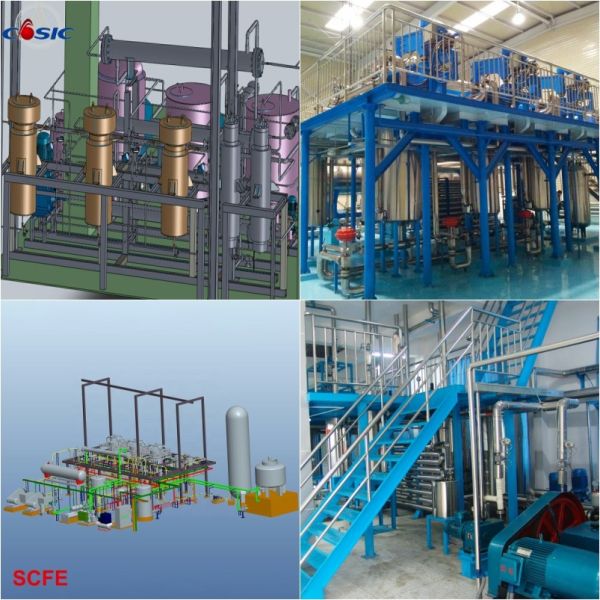

100L×3 Egg Yolk Lecithin Industrial Extraction Systems Images
|
